DLI DIODE-Series LED Toplight Short

Flat smooth surface and Venturi effect
Unique light distribution For light uniformity

Forward thinking, professional and with great passion: we go beyond.

DLI DIODE-Series

Toplight fixture 300-800

The compact and lightweight fixture fixture with its optical lens is able to achieve excellent light distribution. The unique design of the lens creates a high uniform light distribution over the plant canopy. This fixture is perfect for hybrid installation or as replacement of a 1000W HPS fixture.

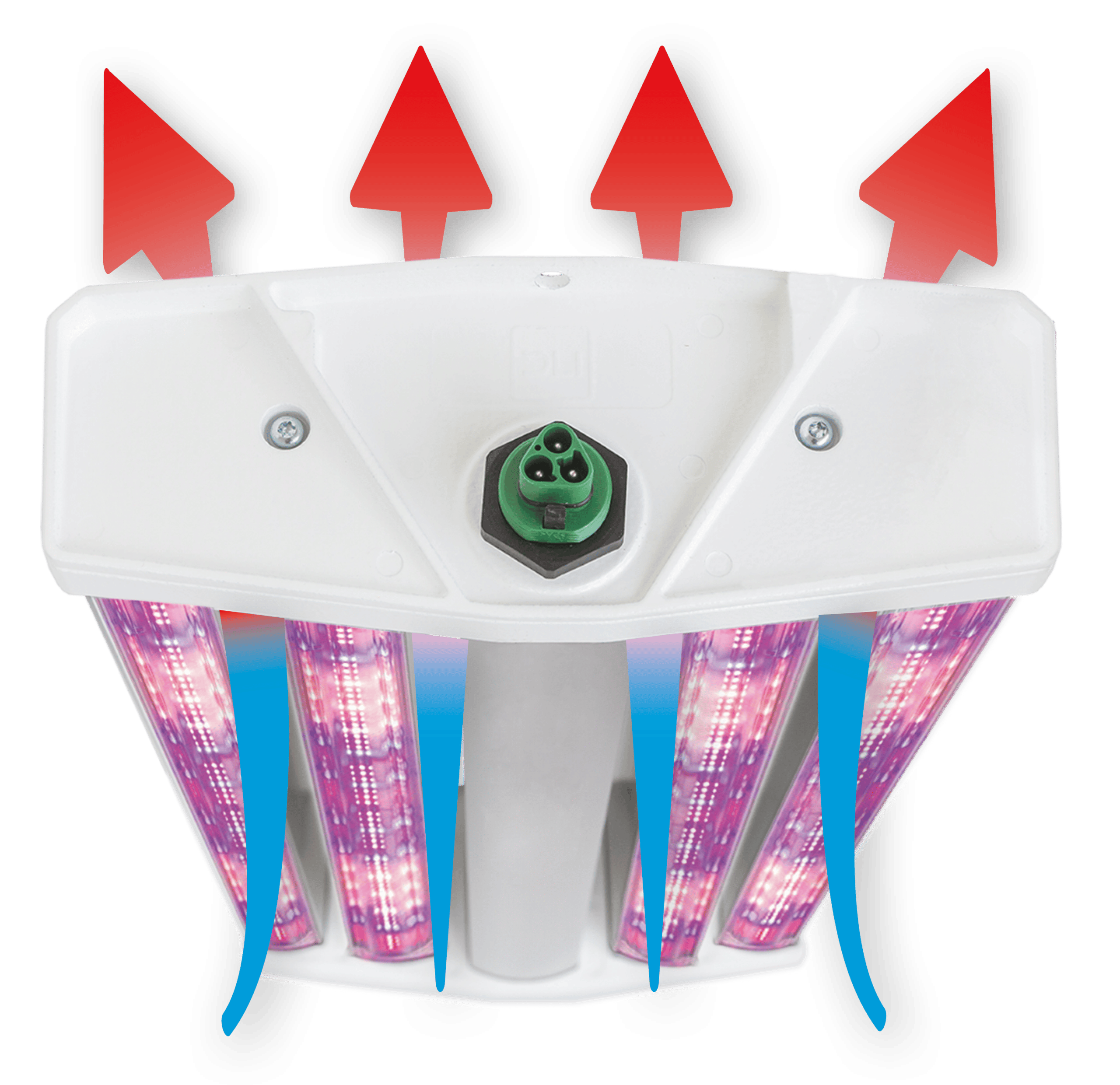

Flat smooth surface

and Venturi effect

This compact and lightweight fixture is made of extruded aluminium profiles (LED bars) with a smooth surface to prevent dirt accumulation and make cleaning easy. Due to the unique positioning of the LED bars the fixtures is passively cooled by what is called the venturi effect: cold air flows upwards to cool the LED bars and makes the warm air go further upwards.

Unique light distribution

For light uniformity

The fixture with its optical lens is able to achieve excellent light distribution. The innovative lens ensures high light uniformity, at every possible height. The wide light distribution makes the fixture perfectly suited for hybrid installation or situations that require the one-to-one replacement of a 1000W HPS fixture. The optical lens retains the light uniformity on the crop, despite this changeover. This eradicates the need to reconfigure the fixture installation, thereby avoiding high installation costs.

DLI DIODE-Series

LED Toplight Fixture

The engineering principles behind the DLI Toplighting Fixtures are based on an entire decade of research and development. The team works with a varied group of some of the best horticulturists around the globe; each of who specialize in plants and have a variety of specific production processes for the ornamental, and commercial flower market. Dutch Lighting Innovations has give horticulturists a new level of consistency, reliability, and quality never see before in the world of growing the flowers and plants. With us you get the best of the best.

Technical specifications

DLI DIODE-Series LED Toplight Short

µMol/J Output up to 1400
Beam Angle 120° - 140°
Power up to 380W
Voltage Range 220V - 400V
Efficiency up to 3.5
Dimming N/A
IP Rating IP65
Product Dimensions 21 x 9.1 x 3.4 inch / 54 x 23 x 8.5 cm
Product Weight 10.6 lb / 4.8 kg
Certifications CE, CSA, ENEC
Country of origin The Netherlands
Warranty 5 Years

Light Distribution

R-B Spectrum

R-W Spectrum
